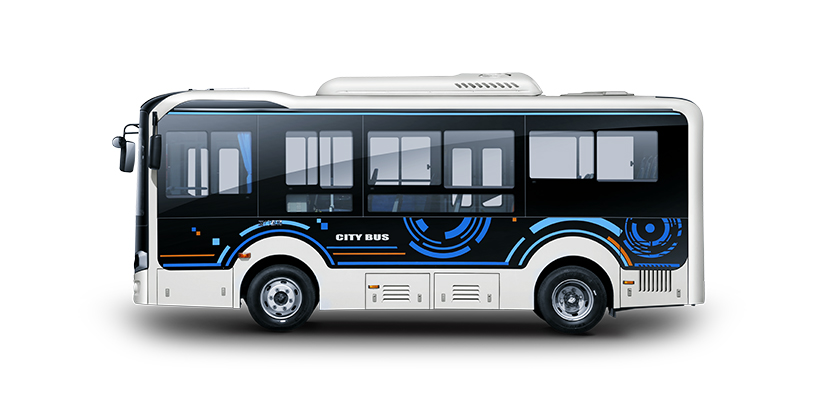

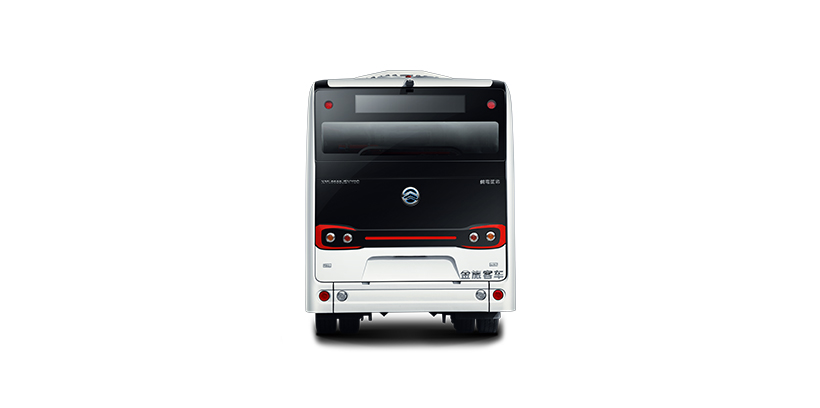

InTour Electric Bus

6.5M Electric bus

Add to Inquiry Basket

Product Features

InTour is the new-generation full electric city buses. With innovative technology, InTour is committed to providing more energy-saving and environmentally friendly 聪commuting solutions for urban city, communities and rural places, helping public transport operater improve efficiency in small cites,towns.


Here are some features of InTour:


1. High-power permanent magnet synchronous drive motor with a max power of 150kw and top torque up to 1000N.M.

2. The use of integrated high-voltagecontroller, by optimizing the electronic control system, the rated power of electric motor is increased by 4%, which improves the high-speed power performance of InTour. At the same time, the energy consumption of the motor will be reduced by 8%, which can effectively extend the drivng range.

3. Using lightweight body technology and three-dimensional vehicle design to reduce the weight of the vehicle and increase the pure electric driving range of the vehicle.

4. The front and rear disc brakes greatly shorten the braking distance and make driving safer.

5. The front and rear exterior can be opened as a whole to ensure the convenience of maintenance.

6. InTour is equipped with an integrated electrical box for intergrating bus module, ABS/ECU.

7. The high-voltage wiring harness is fixed by a bridge frame, which is convenient for maintenance and separates high and low voltage, which effectively avoids interference.





Technical Specification

Dimension(mm)6540/2100/3000
Wheelbase (mm)3320
Curb Weight(kg)5500
Max.Passenger Capacity35
Max Gradability (%)≥15
Brake SystemDouble-circuit air brake,front/rear disk type
Door ArrangementMiddle door
Gross Weight (KG)9500
Max Power Output (KW)60/150
Max Torque(N·M)340/1000
Battery TypeLFP
Battery Capacity128kwh
TireMICHELIN 215/75R17.5
ABSEquipped
ASREquipped
EBSEquipped
