V3 Series

Multi-Fonction Light Ven

Add to Inquiry Basket

Product Features






Technical Specification

Dimension(mm)4980×1700×1980
Wheelbase (mm)2590
Angle of Approach / Departure18°/13°
Fornt / Rear Overhang1220/1140
Engine ModelGW2.8TC-2/YC4F90-23/BJ493Q(4JB1)/JM491Q-ME (Gasoline)/XG491Q(Gasoline)
Transmission5 MT
Suspension SystemFront Independent Suspension/Rear Leaf Spring
Brake SystemFront Disc/Rear Drum Type(Options:ABS EBD)
Door Arrangement4 Doors,Central Control Door Lock

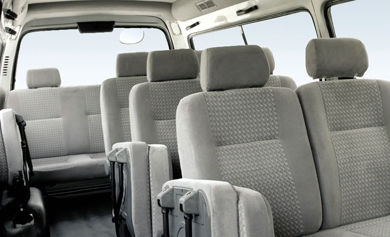

Seat CapacityUp to 11
Dimension(mm)5280×1700×1980
Wheelbase (mm)2890
Angle of Approach / Departure18°/13°
Fornt / Rear Overhang1300/1140
Engine ModelGW2.8TC-2/YC4F90-23/BJ493Q(4JB1)/JM491Q-ME (Gasoline)/XG491Q(Gasoline)
Transmission5 MT
Suspension SystemFront Independent Suspension/Rear Leaf Spring
Brake SystemFront Disc/Rear Drum Type(Options:ABS EBD)
Door Arrangement4 Doors,Central Control Door Lock
Seat CapacityUp to 14

Downloads

Below you can find links to more features, facts and figures.

Light Bus(PDF, 1.09Mb)

Technical Specification(PDF, 310.85Kb)
